Installation Instructions

Easy Fit Box Spring - 8" Mattress Foundation

We are pleased to present the Easy Fit Wood Foundation. This product has been on the market for years now. Unlike many of the other solutions out there the Easy Fit is built in North America. Don’t settle for cheap offshore junk when it comes to a good nights sleep! Assembly is very simple and is estimated at less than 10 minutes with NO TOOLS REQUIRED! Comes neatly packed in a 80” x 10x 10” box.

Advantages:

• 10 minutes approximate assembly time
• No additional tools required
• Ships via UPS or similar carrier
• Easy to disassemble and store
• Can transport in a minivan or SUV
• Fits into attics, townhomes, and Cape Cods
• Higher quality wood means better performance and durability

Assembling the founding is simple

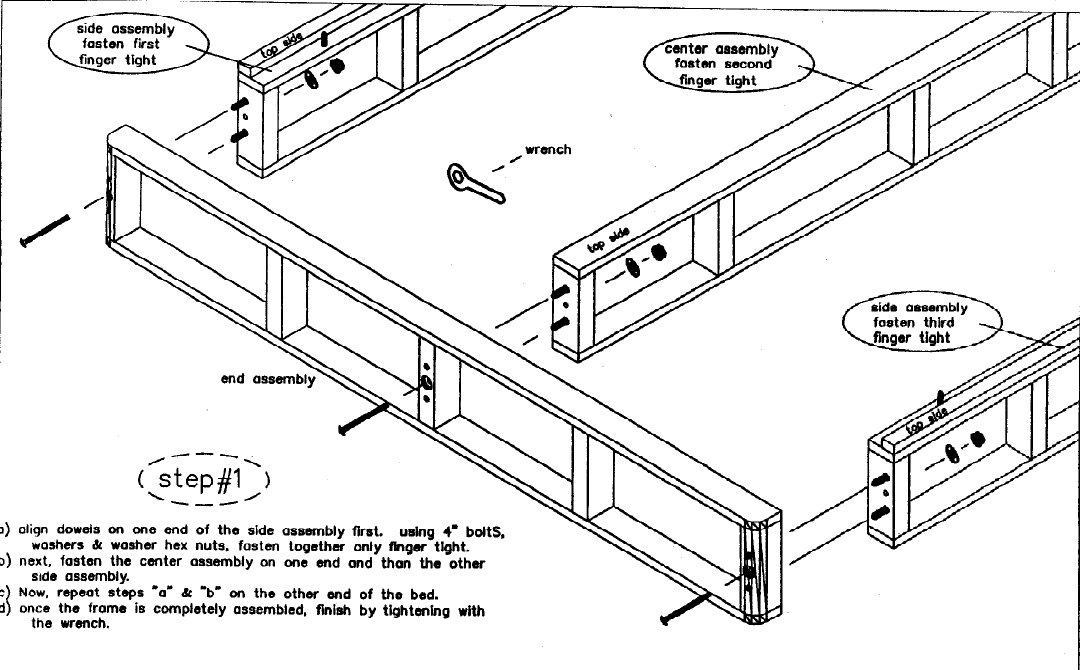

Step 1

• A) Align dowels on one end of the side assembly first. Using 4 inch Bolts, Washers and Hex Nuts, fasten together only finger tight.
• B) Next, fasten the center assembly on one end and then the other side assembly.
• C) Now repeat steps A and B on the other side of the bed.
• D) Once the frame is completely assembled, finish by tightening with the wrench.

* Important *
When unpacking, slide out inner packaging and keep the top cardboard cover sheet and labels for Step 3

Step 2

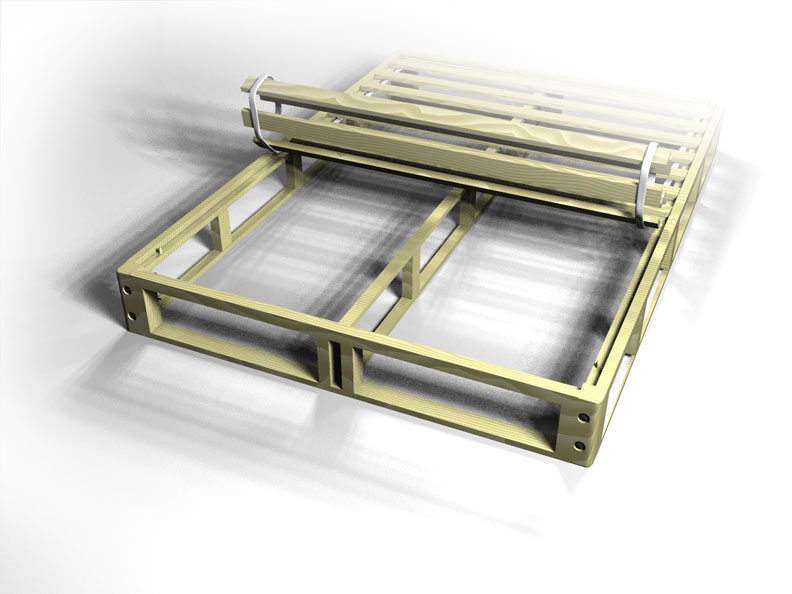

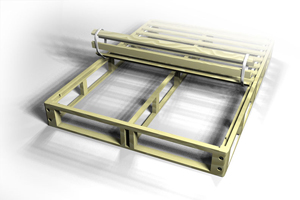

Carefully unroll the bed slats with the strapping facing down. Roughly center the slat assembly over the foundation. Stretch the last slat at each end over the lock dowels to hold the slat assembly in place.

Step 3

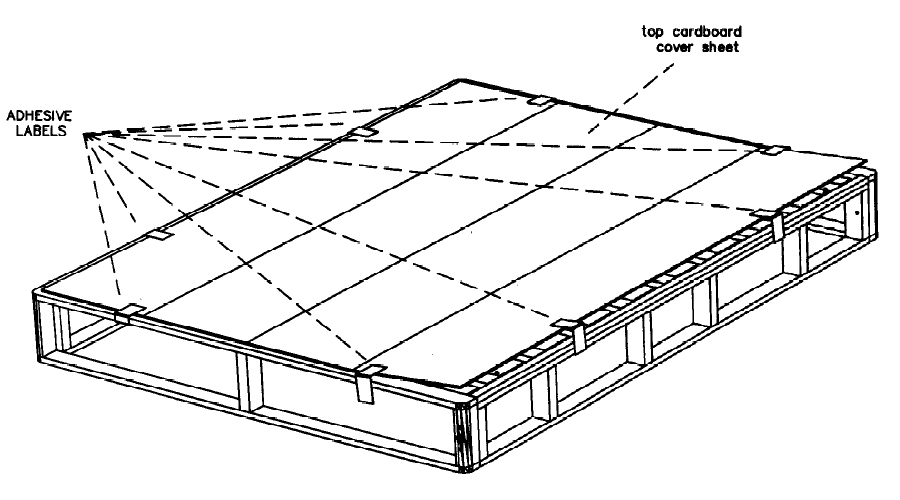

Unfold the Top cardboard cover sheet (White side up) and center it on the foundation. Peel off the labels and apply them to the four sides of the foundation to hold it in place.

Step 4

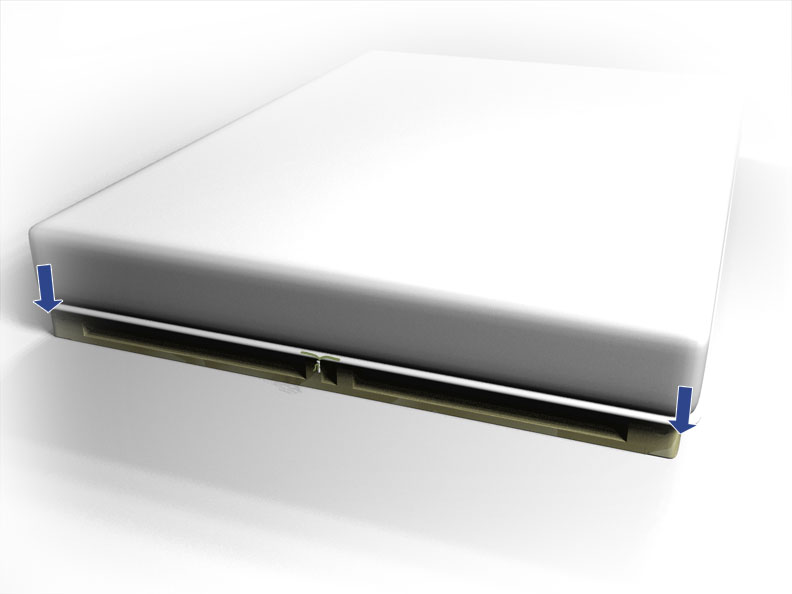

Unfold the ticking and cover the foundation evenly. Pull the rip cord out snug and slide the locking ball in. Pull all four cornders on ticking down so top seams are flat and even, then re-tighten the rip cord.

Its that easy!
